Trigger a Pulse-IT workflow from Aspera Faspex

Lastest tested and confirmed version: IBM Aspera Faspex 5.0

Aspera Faspex can be configured to send a webhook to Pulse-IT when a package has been delivered and is complete.

At the time of writing the limited documentation on Aspera Faspex side is located here: https://www.ibm.com/docs/en/aspera-faspex/5.0?topic=configuration-configuring-package-processing-webhooks

• Step 1: Workflow
• Step 2: API User
• Step 3: Build the URL
• Step 4: Faspex
• Step 5: Payload

Step 1: Workflow

A workflow should be created on Pulse-IT and the webhook URL extracted from the Start task.

The URL would look like: http(s)://server_address/workflow_template/webapi/...

Step 2: API User

A dedicated API user should be created in Pulse-IT.

This user should have a strong password.

This API user should be able to start the created previously workflow.

Step 3: Build the URL

A trigger URL should be built as follow:

http(s)://api_user:api_password@server_address/workflow_template/webapi/...

This URL should be tested and validated in Postman or similar tool before continuing.

According to recent tests, if SSL is activated and the URL in h, Pulse-IT should have a proper certificate, not self-signed.

Step 4: Faspex

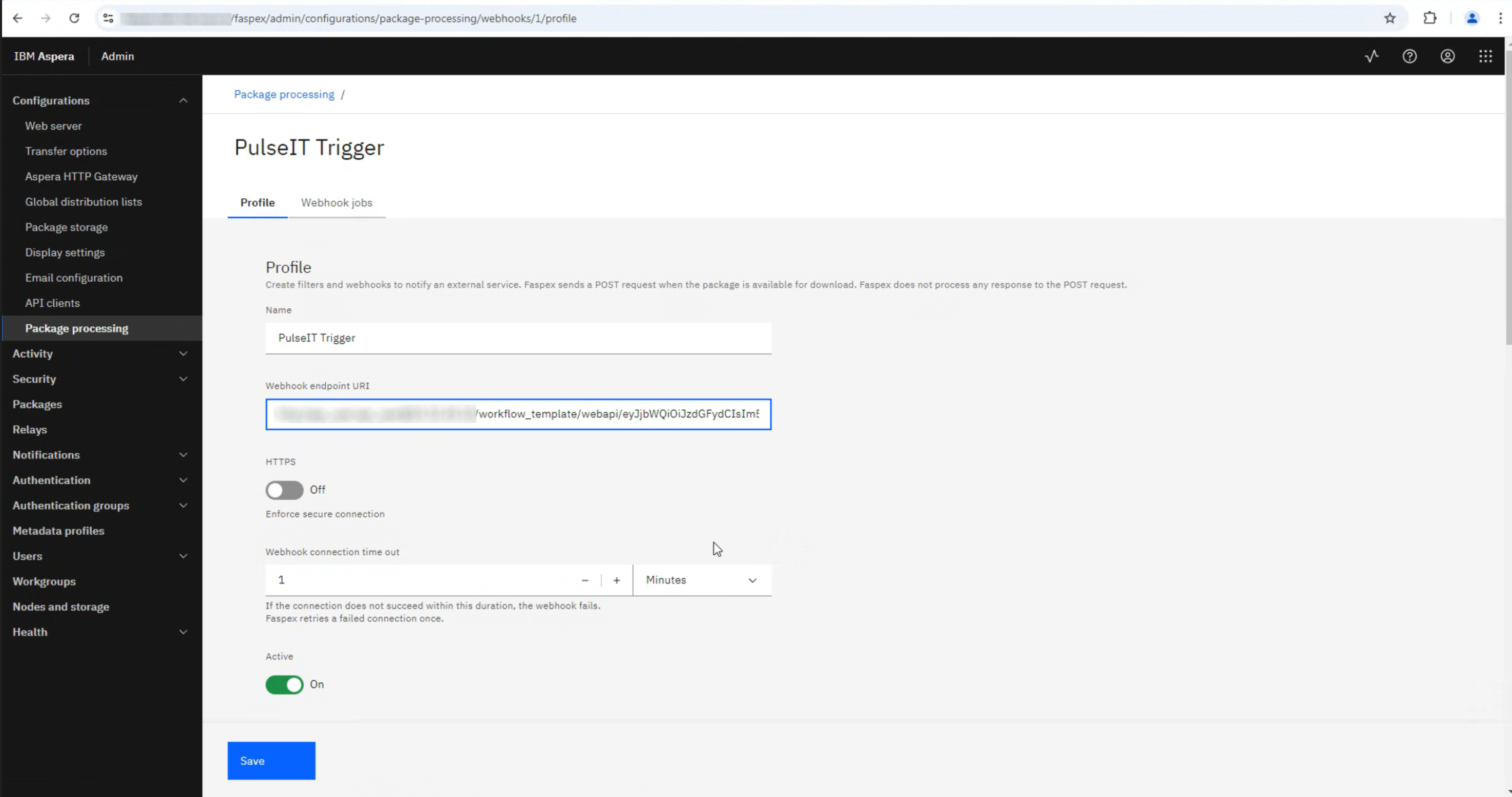

A new Package Processing trigger should be created in Faspex interface under Admin > Package processing > Create new webhook.

Complex filters on Aspera Faspex side can also be setup.

The webhook payload should look like:

{
"faspex_pkg_directory":"/package test - 61ae5292-d8ef-496e-8b15-8cdc0379fc4a.aspera-package/PKG - package test",
"faspex_pkg_name":"Test files",
"faspex_pkg_note":"",
"faspex_pkg_id":506,
"faspex_pkg_delivery_id":506,
"faspex_recipient_list":"aspera-recipient-test@ibm.com",
"faspex_recipient_count":1,
"faspex_sender_id":30,
"faspex_sender_name":"aspera-sender-test@ibm.com",
"faspex_sender_email":"aspera-sender-test@ibm.com",
"faspex_pkg_total_bytes":4633,
"faspex_pkg_total_files":1,
"faspex_pkg_uuid":"61ae5299-d8ea-496e-8b15-8cdc0379fc4a",
"faspex_metadata_fields": "{\"_pkg_uuid\":\"61ae5292-d8ef-496e-8b15-8cdc0379fc4a\",\"_pkg_name\":\"Test files\",\"_created_utc\":\"2022-1209T17:47:03.545Z\"}",
"faspex_recipient_0":"aspera-sender-test@ibm.com"
}

Custom payload fields can be found in the faspex_metadata_fields field.

Step 5: Payload

The fields from the payload are now available in the workflow Pulse-IT as context values.

Depending on your Pulse-IT version, you might need to do the following conversion to be able to access a _my_custom_source field in the faspex_metadata_fields

import json
faspex_metadata_fields = json.loads(faspex_metadata_fields)
custom_source = faspex_metadata_fields["_my_custom_source"]
